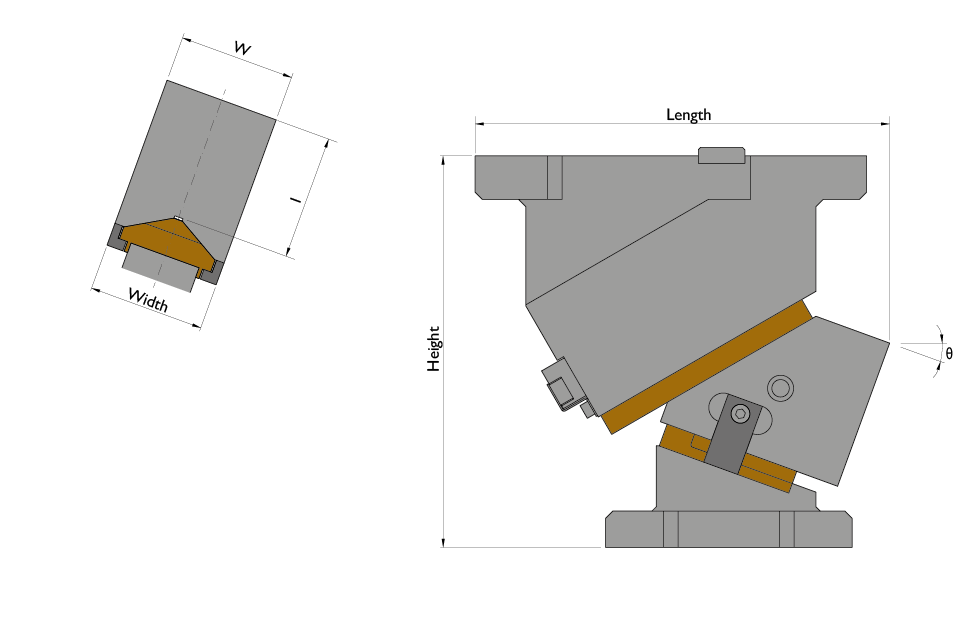

Order No.	W (mm)	θ (º)	Stroke (mm)	Working force (Tnf)	Spring force (kgf)	I (mm)	Width (mm)	Height (mm)	Length (mm)	PDF	3D
CACF-80-00	80	0	32.1	6 - 11	700	86	80	270	270
CACF-80-05	80	5	38.4	6 - 11	700	86	80	270	272.93
CACF-80-10	80	10	38.9	6 - 11	700	86	80	270	279.92
CACF-80-15	80	15	39.7	6 - 11	700	86	80	270	285.93
CACF-80-20	80	20	46.1	6 - 11	700	86	80	270	285.9
CACF-80-25	80	25	47.8	6 - 11	700	86	80	270	289.8
CACF-80-30	80	30	54.3	6 - 11	700	86	80	270	282.59
CACF-80-35	80	35	57.4	6 - 11	700	86	80	270	284.27
CACF-80-40	80	40	64.3	6 - 11	700	86	80	270	274.8
CACF-80-45	80	45	69.6	6 - 11	700	86	80	270	274.2
CACF-80-50	80	50	77.8	6 - 11	700	86	80	270	270
CACF-80-55	80	55	87.2	6 - 11	700	86	80	270	270
CACF-80-60	80	60	98.5	6 - 11	700	86	80	270	270
CACF-80-65	80	65	81.6	6 - 11	700	86	80	270	275
CACF-80-70	80	70	86.4	6 - 11	700	86	80	270	280
CACF-150-00	150	0	32.1	13 - 19	1400	85	150	270	280
CACF-150-05	150	5	32.3	13 - 19	1400	85	150	270	288.26
CACF-150-10	150	10	38.9	13 - 19	1400	85	150	270	285.54
CACF-150-15	150	15	39.7	13 - 19	1400	85	150	270	291.79
CACF-150-20	150	20	46.1	13 - 19	1400	85	150	270	286.97
CACF-150-25	150	25	47.8	13 - 19	1400	85	150	270	291.02
CACF-150-30	150	30	54.3	13 - 19	1400	85	150	270	283.92
CACF-150-35	150	35	57.4	13 - 19	1400	85	150	270	285.66
CACF-150-40	150	40	64.3	13 - 19	1400	85	150	270	280
CACF-150-45	150	45	69.6	13 - 19	1400	85	150	270	280
CACF-150-50	150	50	77.8	13 - 19	1400	85	150	270	280
CACF-150-55	150	55	87.2	13 - 19	1400	85	150	270	280
CACF-150-60	150	60	98.5	13 - 19	1400	85	150	270	280
CACF-150-65	150	65	93.2	13 - 19	1400	85	150	270	280
CACF-150-70	150	70	86.4	13 - 19	1400	85	150	270	285
