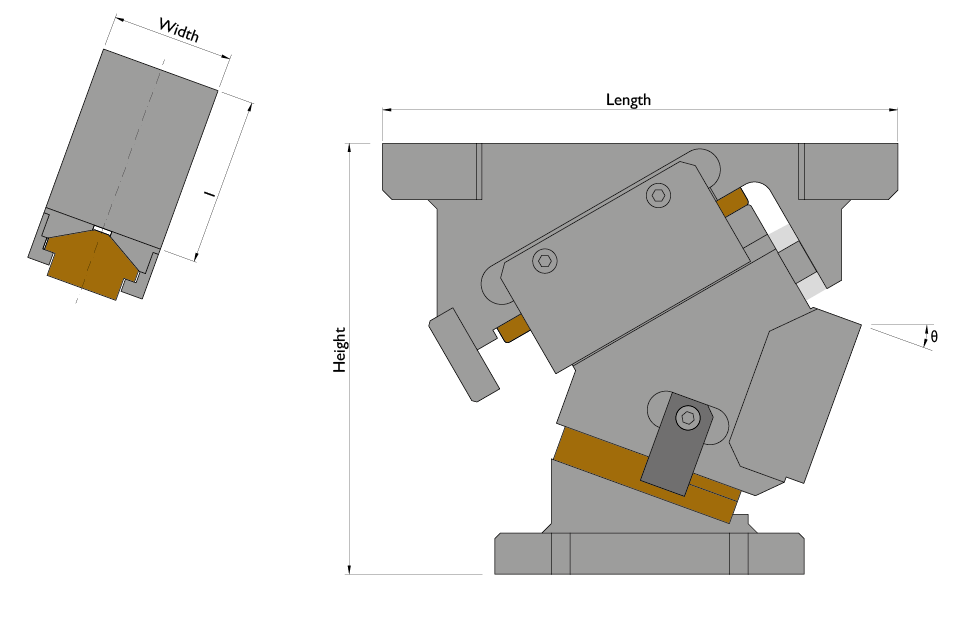

Order No.	W (mm)	θ (º)	Stroke (mm)	Working force (Tnf)	Spring force (kgf)	I (mm)	Width (mm)	Height (mm)	Length (mm)	PDF	3D
CACT-65-00	65	0	22.5	7 - 14	611	90	65	230	275
CACT-65-05	65	5	22.6	7 - 14	611	90	65	230	275
CACT-65-10	65	10	27.2	7 - 14	611	90	65	230	275
CACT-65-15	65	15	27.8	7 - 14	611	90	65	230	275
CACT-65-20	65	20	32.3	7 - 14	611	90	65	230	275
CACT-65-25	65	25	33.4	7 - 14	611	90	65	230	275
CACT-65-30	65	30	38	7 - 14	611	90	65	230	290
CACT-65-35	65	35	40.2	7 - 14	611	90	65	230	290
CACT-65-40	65	40	45	7 - 14	611	90	65	230	290
CACT-65-45	65	45	48.7	7 - 14	611	90	65	230	290
CACT-65-50	65	50	54.5	7 - 14	611	90	65	230	290
CACT-65-55	65	55	61	7 - 14	611	90	65	230	290
CACT-65-60	65	60	70	7 - 14	611	90	65	230	300
CACT-65-65	65	65	68.5	7 - 14	605	90	65	230	335
CACT-65-70	65	70	67.2	7 - 14	598	90	65	230	335
CACT-65-75	65	75	69.5	7 - 14	536	90	65	230	335
