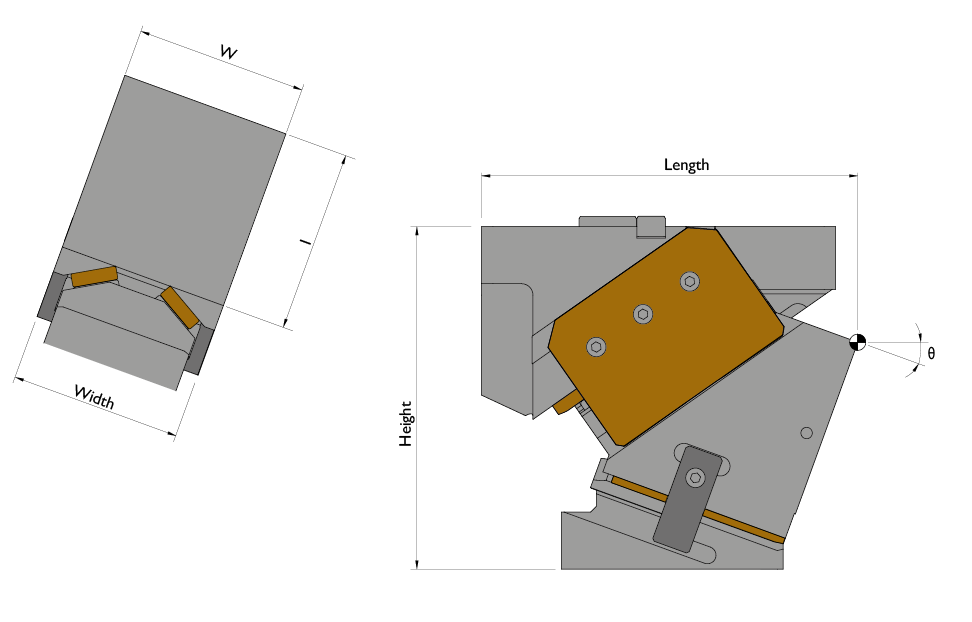

Order No.	W (mm)	θ (º)	Stroke (mm)	Working force (Tnf)	Spring force (kgf)	I (mm)	Width (mm)	Height (mm)	Length (mm)	PDF	3D
CACV-F-60-00	60	0	19.3	14	280	100	60	210	205
CACV-F-60-05	60	5	21.3	14	280	100	60	210	205
CACV-F-60-10	60	10	21.5	14	280	100	60	210	205
CACV-F-60-15	60	15	23.8	14	280	100	60	210	205
CACV-F-60-20	60	20	24.5	14	280	100	60	210	205
CACV-F-60-25	60	25	27.1	14	280	100	60	210	205
CACV-F-60-30	60	30	30	14	280	100	60	210	205
CACV-F-60-35	60	35	31.7	14	280	100	60	210	205
CACV-F-60-40	60	40	35.5	14	280	100	60	210	220
CACV-F-60-45	60	45	38.5	14	280	100	60	210	235
CACV-F-60-50	60	50	43.9	14	280	100	60	210	220
CACV-F-60-55	60	55	49.2	14	280	100	60	210	220
CACV-F-60-60	60	60	58	14	280	100	60	210	220
CACV-F-60-65	60	65	68.6	14	280	100	60	210	220
CACV-F-60-70	60	70	70.6	14	280	100	60	210	220
CACV-F-60-75	60	75	76.1	14	280	100	60	210	235
CACV-F-85-00	85	0	30.9	29	560	120	85	225	255
CACV-F-85-05	85	5	34.1	29	560	120	85	225	255
CACV-F-85-10	85	10	34.5	29	560	120	85	225	255
CACV-F-85-15	85	15	38.1	29	560	120	85	225	255
CACV-F-85-20	85	20	41.8	29	560	120	85	225	259.24
CACV-F-85-25	85	25	43.4	29	560	120	85	225	285
CACV-F-85-30	85	30	48	29	560	120	85	225	285
CACV-F-85-35	85	35	50.8	29	560	120	85	225	285
CACV-F-85-40	85	40	56.8	29	560	120	85	225	285
CACV-F-85-45	85	45	42.3	29	560	120	85	225	265
CACV-F-85-50	85	50	48.2	29	560	120	85	225	265
CACV-F-85-55	85	55	54.1	29	560	120	85	225	265
CACV-F-85-60	85	60	63.8	29	560	120	85	225	267.02
CACV-F-85-65	85	65	75.4	29	560	120	85	225	265
CACV-F-85-70	85	70	95	29	560	120	85	225	275
CACV-F-85-75	85	75	95.1	29	560	120	85	225	275
CACV-F-110-00	110	0	30.9	41	560	160	110	275	290
CACV-F-110-05	110	5	34.1	41	560	160	110	275	290
CACV-F-110-10	110	10	34.5	41	560	160	110	275	292.94
CACV-F-110-15	110	15	38.1	41	560	160	110	275	300.41
CACV-F-110-20	110	20	41.8	41	560	160	110	275	307.8
CACV-F-110-25	110	25	43.4	41	560	160	110	275	302,93
CACV-F-110-30	110	30	48	41	560	160	110	275	309.61
CACV-F-110-35	110	35	50.8	41	560	160	110	275	316.06
CACV-F-110-40	110	40	56.8	41	560	160	110	275	322.23
CACV-F-110-45	110	45	61.5	41	560	160	110	275	311.62
CACV-F-110-50	110	50	48.2	41	560	160	110	275	309.74
CACV-F-110-55	110	55	54.1	41	560	160	110	275	302.27
CACV-F-110-60	110	60	63.8	41	560	160	110	275	305.96
CACV-F-110-65	110	65	75.4	41	560	160	110	275	295
CACV-F-110-70	110	70	95	41	560	160	110	275	295
CACV-F-110-75	110	75	95.1	41	560	160	110	275	310
CACV-F-150-00	150	0	32.1	59	710	160	150	300	310
CACV-F-150-05	150	5	35.5	59	710	160	150	300	310
CACV-F-150-10	150	10	35.9	59	710	160	150	300	313.81
CACV-F-150-15	150	15	39.7	59	710	160	150	300	321.7
CACV-F-150-20	150	20	43.6	59	710	160	150	300	329.51
CACV-F-150-25	150	25	45.2	59	710	160	150	300	350
CACV-F-150-30	150	30	50	59	710	160	150	300	352.11
CACV-F-150-35	150	35	52.9	59	710	160	150	300	364.66
CACV-F-150-40	150	40	59.2	59	710	160	150	300	371.87
CACV-F-150-45	150	45	64.1	59	710	160	150	300	340
CACV-F-150-50	150	50	73.1	59	710	160	150	300	340
CACV-F-150-55	150	55	81.9	59	710	160	150	300	347.32
CACV-F-150-60	150	60	96.6	59	710	160	150	300	353.59
CACV-F-150-65	150	65	91.4	59	710	160	150	300	359.15
CACV-F-150-70	150	70	84.7	59	710	160	150	300	340
CACV-F-150-75	150	75	76.1	59	710	160	150	300	340
CACV-F-180-00	180	0	32.1	61	710	160	180	300	310
CACV-F-180-05	180	5	35.5	61	710	160	180	300	310
CACV-F-180-10	180	10	35.9	61	710	160	180	300	313.81
CACV-F-180-15	180	15	39.7	61	710	160	180	300	321.7
CACV-F-180-20	180	20	43.6	61	710	160	180	300	329.51
CACV-F-180-25	180	25	45.2	61	710	160	180	300	350
CACV-F-180-30	180	30	50	61	710	160	180	300	352.11
CACV-F-180-35	180	35	52.9	61	710	160	180	300	364.66
CACV-F-180-40	180	40	59.2	61	710	160	180	300	371.87
CACV-F-180-45	180	45	64.1	61	710	160	180	300	340
CACV-F-180-50	180	50	73.1	61	710	160	180	300	340
CACV-F-180-55	180	55	81.9	61	710	160	180	300	347.32
CACV-F-180-60	180	60	96.6	61	710	160	180	300	353.59
CACV-F-180-65	180	65	91.4	61	710	160	180	300	359.15
CACV-F-180-70	180	70	84.7	61	710	160	180	300	340
CACV-F-180-75	180	75	76.1	61	710	160	180	300	340
CACV-F-220-00	220	0	32.1	74	1100	160	220	300	320
CACV-F-220-05	220	5	35.5	74	1100	160	220	300	320
CACV-F-220-10	220	10	35.9	74	1100	160	220	300	323.81
CACV-F-220-15	220	15	39.7	74	1100	160	220	300	331.7
CACV-F-220-20	220	20	43.6	74	1100	160	220	300	337.8
CACV-F-220-25	220	25	45.2	74	1100	160	220	300	360
CACV-F-220-30	220	30	50	74	1100	160	220	300	360
CACV-F-220-35	220	35	52.9	74	1100	160	220	300	362.94
CACV-F-220-40	220	40	59.2	74	1100	160	220	300	373.16
CACV-F-220-45	220	45	64.1	74	1100	160	220	300	365
CACV-F-220-50	220	50	73.1	74	1100	160	220	300	365
CACV-F-220-55	220	55	81.9	74	1100	160	220	300	365
CACV-F-220-60	220	60	96.6	74	1100	160	220	300	371.66
CACV-F-220-65	220	65	91.4	74	1100	160	220	300	367.84
CACV-F-220-70	220	70	100.8	74	1100	160	220	300	372.05
CACV-F-220-75	220	75	95.1	74	1100	160	220	300	365
CACV-F-260-00	260	0	32.1	78	2400	160	260	300	320
CACV-F-260-05	260	5	35.5	78	2400	160	260	300	320
CACV-F-260-10	260	10	35.9	78	2400	160	260	300	323.81
CACV-F-260-15	260	15	39.7	78	2400	160	260	300	331.7
CACV-F-260-20	260	20	43.6	78	2400	160	260	300	337.8
CACV-F-260-25	260	25	45.2	78	2400	160	260	300	360
CACV-F-260-30	260	30	50	78	2400	160	260	300	360
CACV-F-260-35	260	35	52.9	78	2400	160	260	300	362.94
CACV-F-260-40	260	40	59.2	78	2400	160	260	300	373.16
CACV-F-260-45	260	45	64.1	78	2400	160	260	300	365
CACV-F-260-50	260	50	73.1	78	2400	160	260	300	365
CACV-F-260-55	260	55	81.9	78	2400	160	260	300	365
CACV-F-260-60	260	60	96.6	78	2400	160	260	300	371.66
CACV-F-260-65	260	65	91.4	78	2400	160	260	300	367.84
CACV-F-260-70	260	70	100.8	78	2400	160	260	300	372.05
CACV-F-260-75	260	75	95.1	78	2400	160	260	300	365
CACV-F-330-00	330	0	37.3	104	4000	180	330	375	415
CACV-F-330-05	330	5	41.2	104	4000	180	330	375	415
CACV-F-330-10	330	10	41.6	104	4000	180	330	375	418.81
CACV-F-330-15	330	15	46	104	4000	180	330	375	426.7
CACV-F-330-20	330	20	50.6	104	4000	180	330	375	415
CACV-F-330-25	330	25	52.4	104	4000	180	330	375	417.16
CACV-F-330-30	330	30	58	104	4000	180	330	375	424.61
CACV-F-330-35	330	35	61.3	104	3900	180	330	375	427.78
CACV-F-330-40	330	40	68.6	104	3900	180	330	375	438.66
CACV-F-330-45	330	45	74.3	104	3900	180	330	375	450
CACV-F-330-50	330	50	84.8	104	3900	180	330	375	450
CACV-F-330-55	330	55	95	104	3900	180	330	375	450
CACV-F-330-60	330	60	112.1	104	3900	180	330	375	450
CACV-F-330-65	330	65	102.9	104	3900	180	330	375	450
CACV-F-330-70	330	70	127.1	104	3900	180	330	375	450
CACV-F-330-75	330	75	114.2	104	3900	180	330	375	450
CACV-F-400-00	400	0	37.3	107	4000	180	400	375	415
CACV-F-400-05	400	5	41.2	107	4000	180	400	375	415
CACV-F-400-10	400	10	41.6	107	4000	180	400	375	418.81
CACV-F-400-15	400	15	46	107	4000	180	400	375	426.7
CACV-F-400-20	400	20	50.6	107	4000	180	400	375	415
CACV-F-400-25	400	25	52.4	107	4000	180	400	375	417.16
CACV-F-400-30	400	30	58	107	4000	180	400	375	424.61
CACV-F-400-35	400	35	61.3	107	3900	180	400	375	427.78
CACV-F-400-40	400	40	68.6	107	3900	180	400	375	438.66
CACV-F-400-45	400	45	74.3	107	3900	180	400	375	450
CACV-F-400-50	400	50	84.8	107	3900	180	400	375	450
CACV-F-400-55	400	55	95	107	3900	180	400	375	450
CACV-F-400-60	400	60	112.1	107	3900	180	400	375	450
CACV-F-400-65	400	65	102.9	107	3900	180	400	375	450
CACV-F-400-70	400	70	127.1	107	3900	180	400	375	450
CACV-F-400-75	400	75	114.2	107	3900	180	400	375	450
