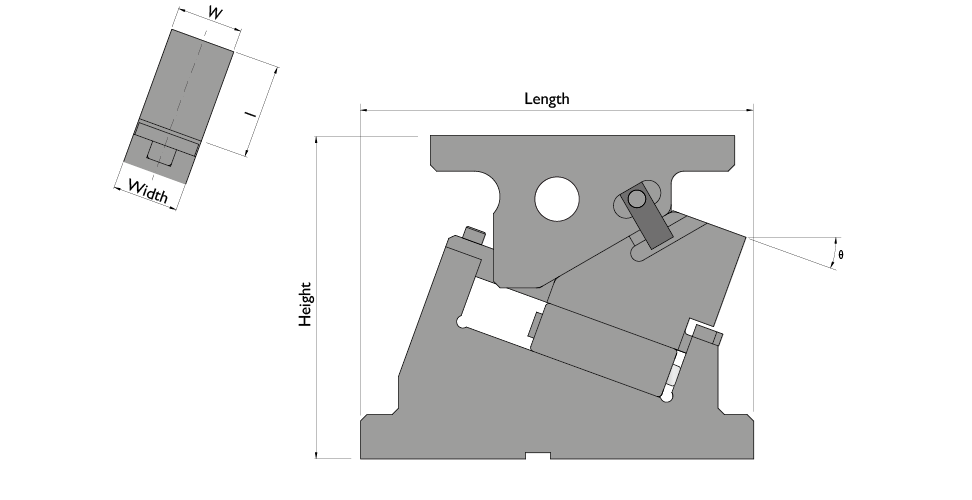

Order No. W
(mm)		 θ
(º)		 Stroke
(mm)		 Working force
(Tnf)		 Spring force
(kgf)		 I
(mm)		 Width
(mm)		 Height
(mm)		 Length
(mm)		 PDF 3D
CDCB-52-00-55 52 0 55 2 - 4 280 75 52 215 235
CDCB-52-05-55 52 5 55 2 - 4 280 75 52 255 310
CDCB-52-10-55 52 10 55 2 - 4 280 75 52 255 310
CDCB-52-15-55 52 15 55 2 - 4 280 75 52 255 310
CDCB-52-20-55 52 20 55 2 - 4 280 75 52 255 310
CDCB-90-00-55 90 0 55 4 - 8 560 82 90 220 236
CDCB-90-05-55 90 5 55 4 - 8 560 82 90 220 251.42
CDCB-90-10-55 90 10 55 4 - 8 560 82 90 220 261.72
CDCB-90-15-55 90 15 55 4 - 8 560 82 90 225 275.82
