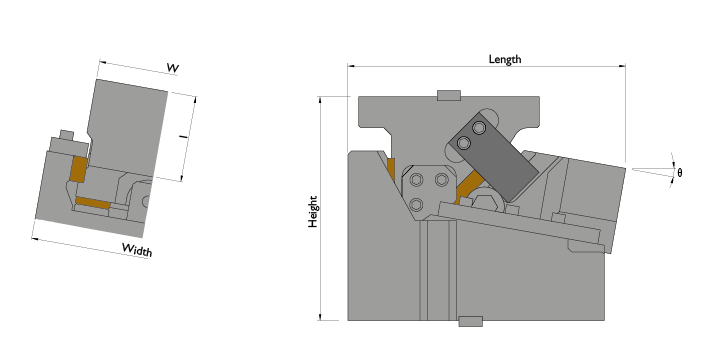

Order No.	W (mm)	θ (º)	Stroke (mm)	Working force (Tnf)	Spring force (kgf)	I (mm)	Width (mm)	Height (mm)	Length (mm)	PDF	3D
CDCP-50-00-60	50	0	60	1	280	68	50	240	255
CDCP-50-05-60	50	5	60	1	280	68	50	240	290
CDCP-50-10-60	50	10	60	1	280	68	50	240	290
CDCP-50-15-60	50	15	60	1	280	68	50	240	297.97
CDCP-50-20-60	50	20	60	1	280	68	50	240	308.26
CDCP-50-25-60	50	25	60	1	280	68	50	240	308.07
CDCP-50-30-60	50	30	60	1	280	68	50	240	312.32
CDCP-80-00-60	80	0	60	4	540	88	80	265	310
CDCP-80-05-60	80	5	60	4	540	88	80	265	310
CDCP-80-10-60	80	10	60	4	540	88	80	265	310
CDCP-80-15-60	80	15	60	4	540	88	80	265	312.6
CDCP-80-20-60	80	20	60	4	540	88	80	265	321.51
CDCP-80-25-60	80	25	60	4	540	88	80	265	329.78
CDCP-80-30-60	80	30	60	4	540	88	80	265	332.31
CDCP-150-00-60	150	0	60	12	1400	120	290	300	365
CDCP-150-05-60	150	5	60	12	1400	120	290	300	378.47
CDCP-150-10-60	150	10	60	12	1400	120	290	310	385.01
CDCP-150-15-60	150	15	60	12	1400	120	290	310	394.53
CDCP-150-20-60	150	20	60	12	1400	120	290	335	396.96
CDCP-150-25-60	150	25	60	12	1400	120	290	345	397.25
CDCP-150-30-60	150	30	60	12	1400	120	290	360	400.35
CDCP-200-00-60	200	0	60	15	1400	120	320	300	365
CDCP-200-05-60	200	5	60	15	1400	120	320	300	378.47
CDCP-200-10-60	200	10	60	15	1400	120	320	310	385.01
CDCP-200-15-60	200	15	60	15	1400	120	320	310	394.53
CDCP-200-20-60	200	20	60	15	1400	120	320	335	396.96
CDCP-200-25-60	200	25	60	15	1400	120	320	345	397.25
CDCP-200-30-60	200	30	60	15	1400	120	320	360	400.35
CDCP-300-00-60	300	0	60	30	2800	120	410	335	420
CDCP-300-05-60	300	5	60	30	2800	120	410	335	431.84
CDCP-300-10-60	300	10	60	30	2800	120	410	355	442.57
CDCP-300-15-60	300	15	60	30	2800	120	410	355	449.63
CDCP-300-20-60	300	20	60	30	2800	120	410	375	454.17
CDCP-300-25-60	300	25	60	30	2800	120	410	385	461.14
CDCP-300-30-60	300	30	60	30	2800	120	410	405	465.47
