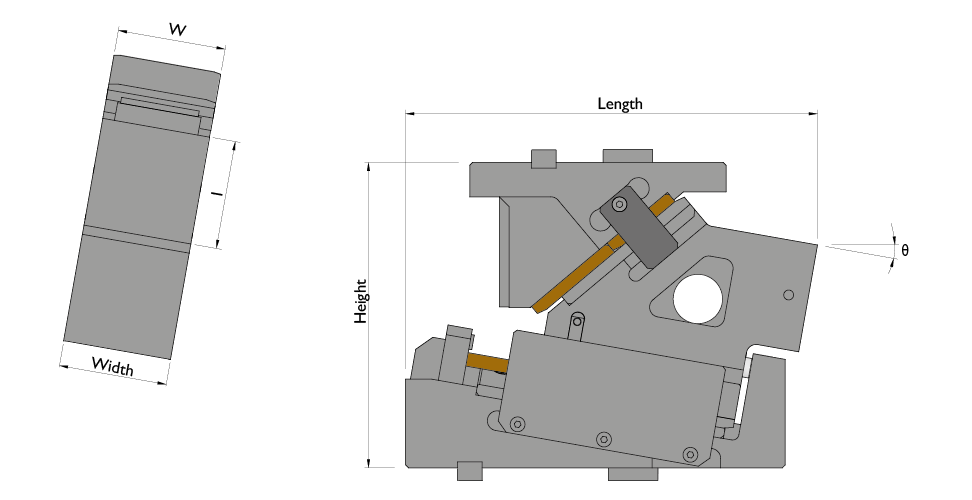

Order No.	W (mm)	θ (º)	Stroke (mm)	Working force (Tnf)	Spring force (kgf)	I (mm)	Width (mm)	Height (mm)	Length (mm)	PDF	3D
CDCV-50-00-55	50	0	55	3	560	75	50	250	300
CDCV-50-05-55	50	5	55	3	560	75	50	250	310.76
CDCV-50-10-55	50	10	55	3	560	75	50	250	318.12
CDCV-50-15-55	50	15	55	3	560	75	50	250	325.02
CDCV-50-20-55	50	20	55	3	560	75	50	250	331.41
CDCV-85-00-70	85	0	70	6	710	85	85	290	340
CDCV-85-05-70	85	5	70	6	710	85	85	290	354.32
CDCV-85-10-70	85	10	70	6	710	85	85	290	363.2
CDCV-85-15-70	85	15	70	6	710	85	85	290	371.68
CDCV-85-20-70	85	20	70	6	710	85	85	290	379.39
CDCV-110-00-70	110	0	70	12	1100	110	110	310	385
CDCV-110-05-70	110	5	70	12	1100	110	110	310	401.59
CDCV-110-10-70	110	10	70	12	1100	110	110	310	417.76
CDCV-110-15-70	110	15	70	12	1100	110	110	310	428.41
CDCV-110-20-70	110	20	70	12	1100	110	110	310	438.46
CDCV-150-00-70	150	0	70	17	1400	110	150	310	390
CDCV-150-05-70	150	5	70	17	1400	110	150	310	407.59
CDCV-150-10-70	150	10	70	17	1400	110	150	310	423.74
CDCV-150-15-70	150	15	70	17	1400	110	150	310	434.37
CDCV-150-20-70	150	20	70	17	1400	110	150	310	444.4
CDCV-220-00-70	220	0	70	25	2200	110	220	310	390
CDCV-220-05-70	220	5	70	25	2200	110	220	310	406.59
CDCV-220-10-70	220	10	70	25	2200	110	220	310	422.76
CDCV-220-15-70	220	15	70	25	2200	110	220	310	433.41
CDCV-220-20-70	220	20	70	25	2200	110	220	310	443.46
CDCV-330-00-80	330	0	80	35	2800	180	330	380	400
CDCV-330-05-80	330	5	80	35	2800	180	330	380	424.2
CDCV-330-10-80	330	10	80	35	2800	180	330	380	442.94
CDCV-330-15-80	330	15	80	35	2800	180	330	380	461.09
CDCV-330-20-80	330	20	80	35	2800	180	330	380	478.52
CDCV-400-00-80	400	0	80	44	2800	180	400	400	445
CDCV-400-05-80	400	5	80	44	2800	180	400	400	469.2
CDCV-400-10-80	400	10	80	44	2800	180	400	400	487.94
CDCV-400-15-80	400	15	80	44	2800	180	400	400	501.09
CDCV-400-20-80	400	20	80	44	2800	180	400	400	518.52
