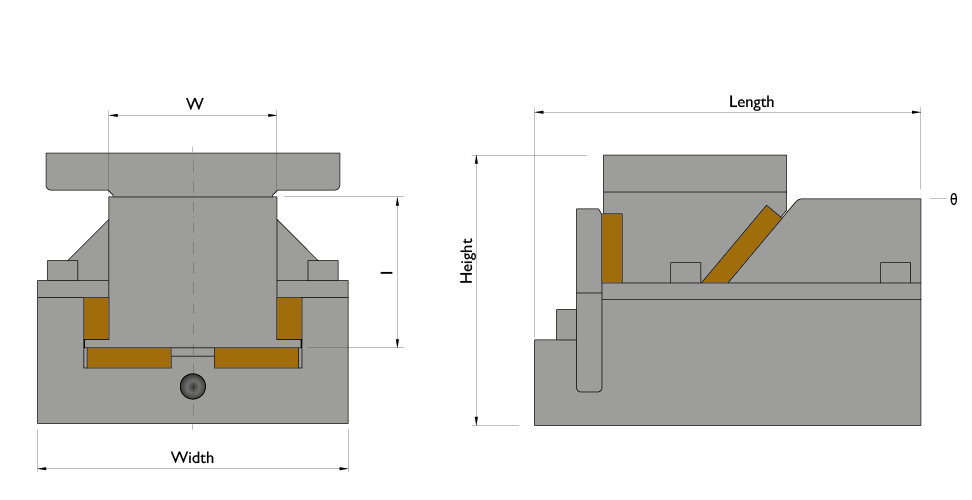

Order No.	W (mm)	θ (º)	Stroke (mm)	Working force (Tnf)	Spring force (kgf)	I (mm)	Width (mm)	Height (mm)	Length (mm)	PDF	3D
CDCV-F-65-00-40	65	0	40	18	560	90	134	161	200
CDCV-F-65-00-60	65	0	60	18	560	90	134	161	230
CDCV-F-65-00-80	65	0	80	23	560	115	134	186	265
CDCV-F-65-00-100	65	0	100	27	560	135	134	207	305
CDCV-F-100-00-40	100	0	40	28	560	90	185	161	200
CDCV-F-100-00-60	100	0	60	28	560	90	185	161	230
CDCV-F-100-00-80	100	0	80	35	560	115	185	186	265
CDCV-F-100-00-100	100	0	100	41	560	135	185	207	305
CDCV-F-150-00-40	150	0	40	41	560	90	260	161	205
CDCV-F-150-00-60	150	0	60	41	560	90	260	161	235
CDCV-F-150-00-80	150	0	80	53	560	115	260	186	270
CDCV-F-150-00-100	150	0	100	62	560	135	260	207	310
