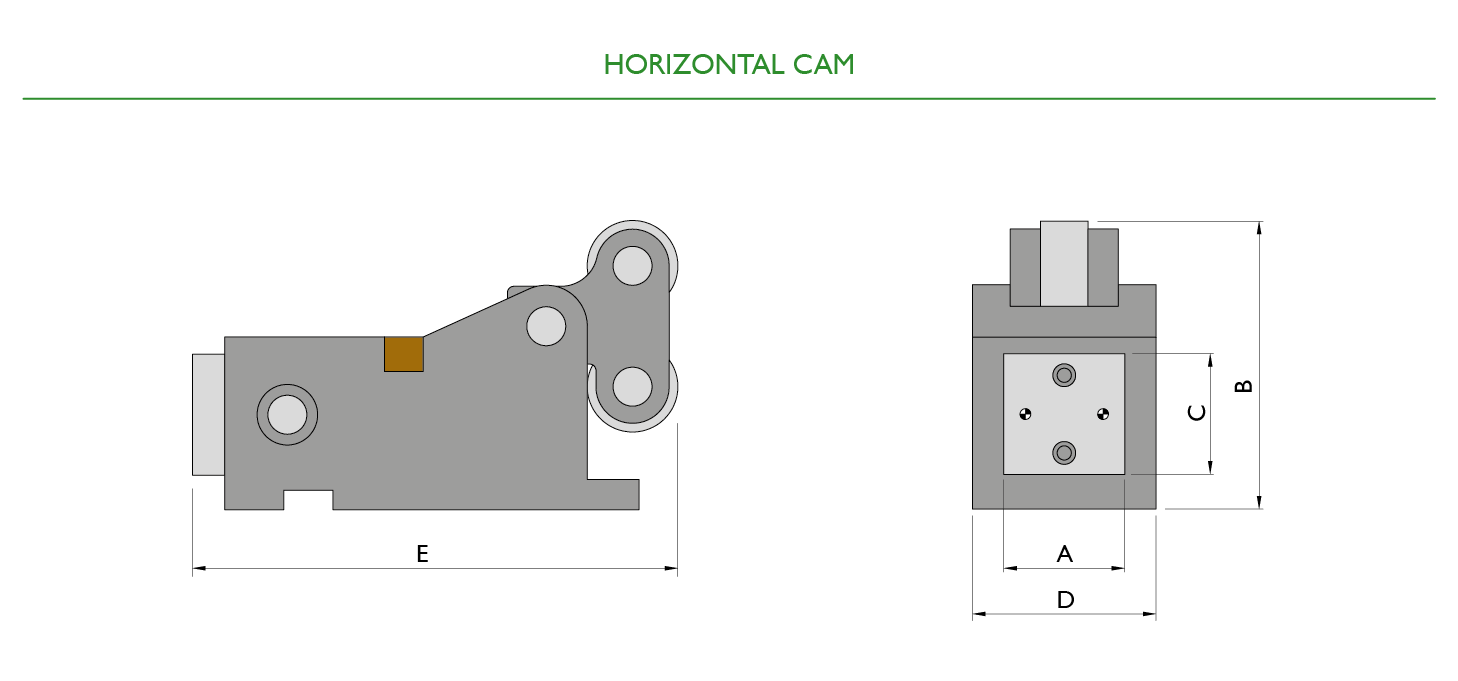

Order No. Working force
(daN)		 Stroke
(mm)		 Spring force
(daN)		 A
(mm)		 B
(mm)		 C
(mm)		 D
(mm)		 E
(mm)		 PDF 3D
CPUN-00750-10 750 10 40 44.5 50 44.5 44.5 100
CPUN-01500-12 1500 12 160 45 76 45 65 119
CPUN-03500-20 3500 20 310 45 84 45 75 167
CPUN-05000-25 5000 25 270 45 116 45 80 178.5
CPUN-07000-38 7000 38 550 56 134 56 85 225
CPUN-10000-50 10000 50 550 63 149.5 63 96 255.5
CPUN-20000-50 20000 50 540 75 100 75 145 267.5

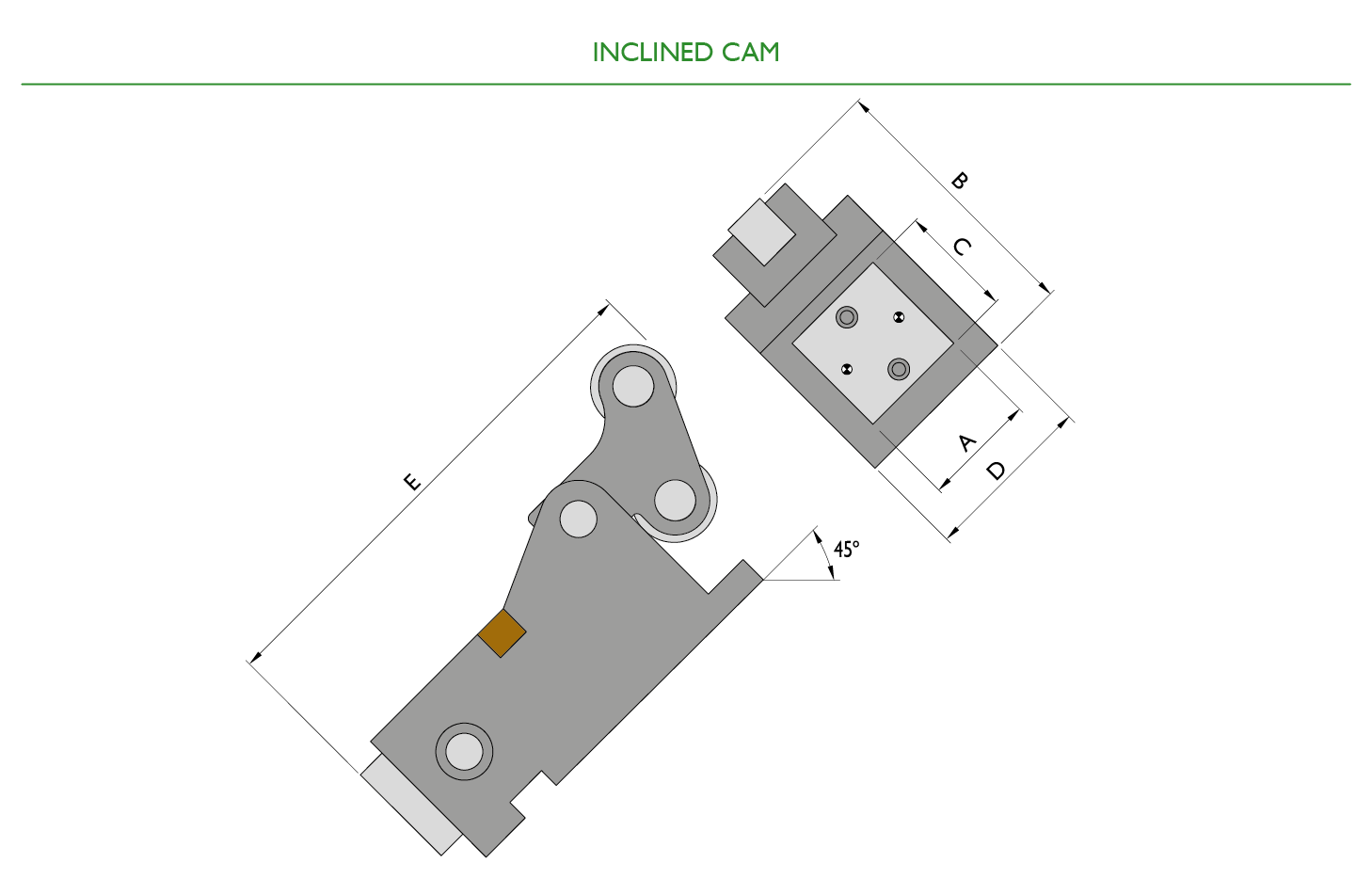

Order No. Working force
(daN)		 Stroke
(mm)		 Spring force
(daN)		 A
(mm)		 B
(mm)		 C
(mm)		 D
(mm)		 E
(mm)		 PDF 3D
CPUN-05000-25-45 5000 25 270 45 98 45 80 213.5
CPUN-07000-38-45 7000 38 550 56 122 56 85 270.5
CPUN-10000-50-45 10000 50 550 63 131 63 96 298.5
