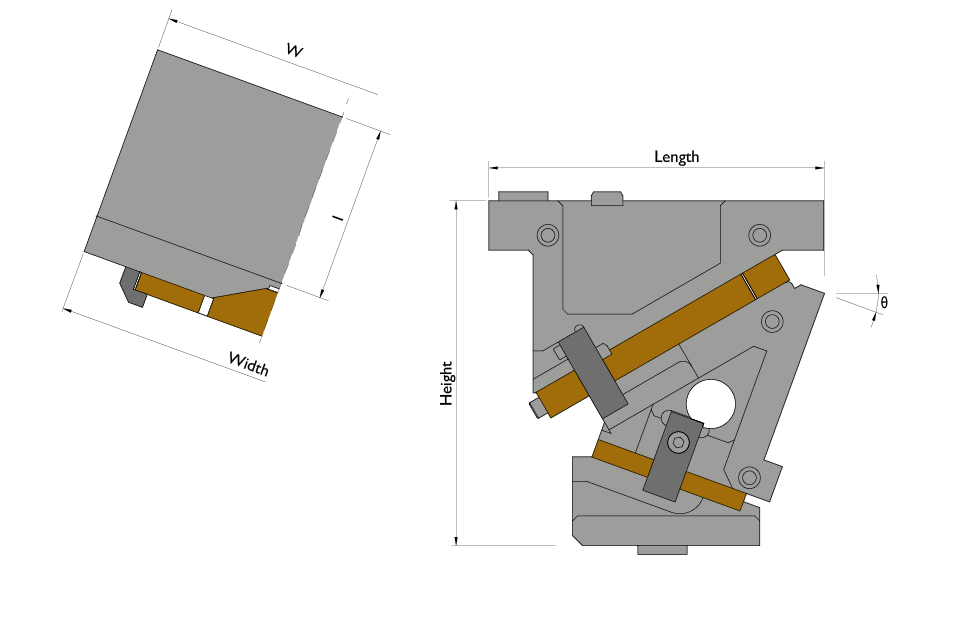

Order No. W
(mm)		 θ
(º)		 Stroke
(mm)		 Working force
(Tnf)		 Spring force
(kgf)		 I
(mm)		 Width
(mm)		 Height
(mm)		 Length
(mm)		 PDF 3D
CACW-200-00 200 0 38.6 12 - 24 1400 180 200 350 340
CACW-200-05 200 5 42.6 12 - 24 1400 180 200 350 340
CACW-200-10 200 10 46.7 12 - 24 1400 180 200 350 340
CACW-200-15 200 15 50.9 12 - 24 1400 180 200 350 340
CACW-200-20 200 20 55.3 12 - 24 1400 180 200 350 340.76
CACW-200-30 200 30 65.1 12 - 24 1400 180 200 350 347.83
CACW-200-40 200 40 77.1 12 - 24 1400 180 200 350 351.17
CACW-200-50 200 50 93.3 12 - 24 1400 180 200 350 354.77
CACW-200-60 200 60 120 12 - 24 1400 180 200 350 385
CACW-300-00 300 0 38.6 20 - 40 2800 180 300 350 340
CACW-300-05 300 5 42.6 20 - 40 2800 180 300 350 340
CACW-300-10 300 10 46.7 20 - 40 2800 180 300 350 340
CACW-300-15 300 15 50.9 20 - 40 2800 180 300 350 340
CACW-300-20 300 20 55.3 20 - 40 2800 180 300 350 340.76
CACW-300-30 300 30 65.1 20 - 40 2800 180 300 350 347.83
CACW-300-40 300 40 77.1 20 - 40 2800 180 300 350 351.17
CACW-300-50 300 50 93.3 20 - 40 2800 180 300 350 354.77
CACW-300-60 300 60 120 20 - 40 2800 180 300 350 385
CACW-400-00 400 0 38.6 25 - 50 2800 180 400 350 340
CACW-400-05 400 5 42.6 25 - 50 2800 180 400 350 340
CACW-400-10 400 10 46.7 25 - 50 2800 180 400 350 340
CACW-400-15 400 15 50.9 25 - 50 2800 180 400 350 340
CACW-400-20 400 20 55.3 25 - 50 2800 180 400 350 340.76
CACW-400-30 400 30 65.1 25 - 50 2800 180 400 350 347.83
CACW-400-40 400 40 77.1 25 - 50 2800 180 400 350 351.17
CACW-400-50 400 50 93.3 25 - 50 2800 180 400 350 354.77
CACW-400-60 400 60 120 25 - 50 2800 180 400 350 385
CACW-500-00 500 0 38.6 32 - 64 4200 180 500 350 340
CACW-500-05 500 5 42.6 32 - 64 4200 180 500 350 340
CACW-500-10 500 10 46.7 32 - 64 4200 180 500 350 340
CACW-500-15 500 15 50.9 32 - 64 4200 180 500 350 340
CACW-500-20 500 20 55.3 32 - 64 4200 180 500 350 340.76
CACW-500-30 500 30 65.1 32 - 64 4200 180 500 350 347.83
CACW-500-40 500 40 77.1 32 - 64 4200 180 500 350 351.17
CACW-500-50 500 50 93.3 32 - 64 4200 180 500 350 354.77
CACW-500-60 500 60 120 32 - 64 4200 180 500 350 385
CACW-600-00 600 0 38.6 40 - 80 5600 180 600 350 340
CACW-600-05 600 5 42.6 40 - 80 5600 180 600 350 340
CACW-600-10 600 10 46.7 40 - 80 5600 180 600 350 340
CACW-600-15 600 15 50.9 40 - 80 5600 180 600 350 340
CACW-600-20 600 20 55.3 40 - 80 5600 180 600 350 340.76
CACW-600-30 600 30 65.1 40 - 80 5600 180 600 350 347.83
CACW-600-40 600 40 77.1 40 - 80 5600 180 600 350 351.17
CACW-600-50 600 50 93.3 40 - 80 5600 180 600 350 354.77
CACW-600-60 600 60 120 40 - 80 5600 180 600 350 385
